راوتر Tenda D305 300Mbps ADSL2

Standard&Protocol
IEEE 802.3, 802.3u

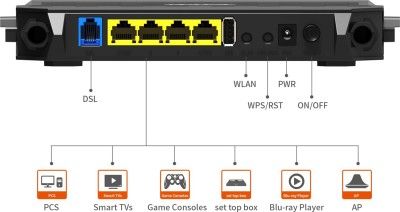

Interface
RJ11 × 1
Power Jack × 1
USB2.0 × 1
10/100Mbps LAN × 3
10/100Mbps WAN × 1

Antenna
5dBi External Omni directional × 4

Button
WLAN ON/OFF
RST/WPS
Power

Power Adapter
Input: 100 - 240V 50/60Hz
Output: 12V1A

Dimension
190 × 125 × 26.5mm

LED
Power, SYS, Internet, USB, WPS, WLAN, LAN(1,2,3,4), DSL

Speed
300Mbps

Frequency
2.4GHz

Basic Features
Wireless ON/OFF
SSID Broadcast ON/OFF
RF Power Setting Normal/Enhanced
Country Options
Channel: Auto, 1-13
Bandwidth: Auto, 20MHz, 40MHz
Client List
WDS

Operating Mode
ADSL2+ Modem Router, Wireless Router

Advanced Functions
PVC Configuration
MAC Clone
DSL Settings
Interface Grouping
QoS( Based IP )

DHCP
DHCP Server
Client List
Address Reservation

Virtual Server
Port Forwarding
Port Triggering
DMZ
UPnP

Security
IP, MAC Filtering

IPv6
Support 6RD & DS-Lite, IPv6 and IPv4 dual stack

Management
LAN IP Setting
System Log
Device Info
Remote Management
Internet Time
Backup & Restore Backup
Restore Default
Diagnostic Tools
Web Based Firmware Upgrade
Access Control

Other
DDNS、IGMP Multicast、TR069

Temperature
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40ºC~70ºC

Humidity
Operating Humidity: 10% ~ 90%RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing

Default Settings
IP Address: 192.168.1.1
Login Username: admin Login Password: admin

Certification
CE, FCC, RoHS

Package Content
D305 × 1
Quick Installation Guide x 1
Power Adapter x 1
Ethernet cable (RJ45) x 1
Telephone cable ( RJ11) × 2
ADSL Splitter x 1
